Introduction 1 last edited. The brains of the system is the powertrain control module pcm also known as the processor. Check for damage corrosion or dirt.

Ford Eec Iv Tfi Iv Electronic Engine Control Troubleshooting

Ea Eb Series 1 Ecu Pinouts Www Fordmods Com

Electrical How To Pull Codes From Eec Iv In 86 95 5 0 Mustangs

Eec iv might not be what you want.

Eec iv wiring diagram 4 9. Hopefully this video will clear up. Ground is always present on circuit 1. Starting eec from scratch. So you want that new fangled efi thingy huh.

92998 technical notes on the eec iv mcu introduction compiled by tom cloud cloudatpeachesphutexasedu font is courier new disclaimer the information supplied herein was taken from technical and sales literature e mail archives news groups and wherever else it could be found. Hi ken collins here ive added a companion video to my 50l engine swap two volume series on wiring a speed density eec harness over to a mass air harness. 5 if the result was not satisfactory separate the wiring harness connector from the ignition module. If you want to retain your cars every day streetabilty there are limiting factors that you will run into.

Fuel pump wiring diagram 1993 1995 f150 f250 f350 all tutorials. This voltage comes directly from the battery positive terminal across a fusible link on the starter motor solenoid on the fender. Having a mass air flow sensor is important for an every day streetcar. It began production in 1974 and went into mass production in 1975.

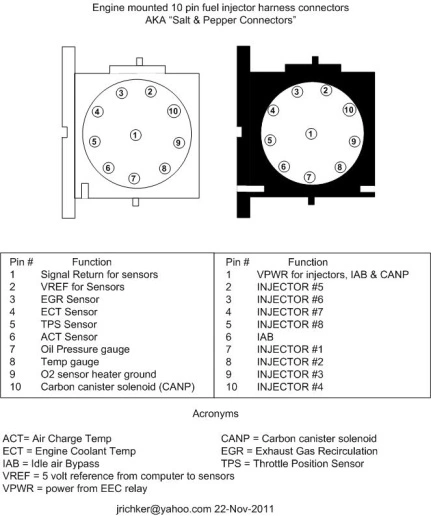

Pin no wire colour purpose voltage. Power in the form of 10 to 12 volts is always present in circuit 4. Example eec wiring diagram fords electronic engine control eec iv is basically the same as the earlier types of eec systems. 4 if the result is okay the problem lies within the eec iv system.

Testing the ford eec power relay brown relay. It subsequently went through several model iterations. Eec power and fuel pump relay wiring diagram description and operation of the circuits 1600 2130 testing fuses with a test light 2206 continued troubleshooting after fixing blown fuse. Eec iv is the best factory option we have but there are many different fuel injection systems out there.

The ford eec or electronic engine control is a series of ecu or engine control unit that was designed and built by ford motor companythe first system eec i used processors and components developed by toshiba in 1973. The differences are a memory easier diagnosis and some redesigned parts. As soon as the ignition switch powers up circuit number 2 the eec power relay closes circuit 3 to circuit 4. Testing the ford eec power relay brown relay testing the ford eec power relay brown relay april 15 2012.
