Gm alt wiring diagram 1979. The alternator converts the engines mechanical rotations into an electrical current using a pulley and belt system. Or terminal post if your vehicle is so equipped. This wiring conguration will excite the alternator to start charging when the engine is running at low rpms. Repair pig tails for this connector available at any autoparts store.

Wiring an alternator. To eliminate this possibility you need an ign sw w an acc terminal. This current is fed to the cars battery charging it for later use. Alternator is a 55 amp from a 79 monte carlo 305.

And a dual terminal connector. The gm alternator used in all chevrolet models is easy to install as it is connected using only a few wires. Because the ignition can get fed by the alt thru the vm connections. The 10si has three terminals including those with a 1 wire regulator.

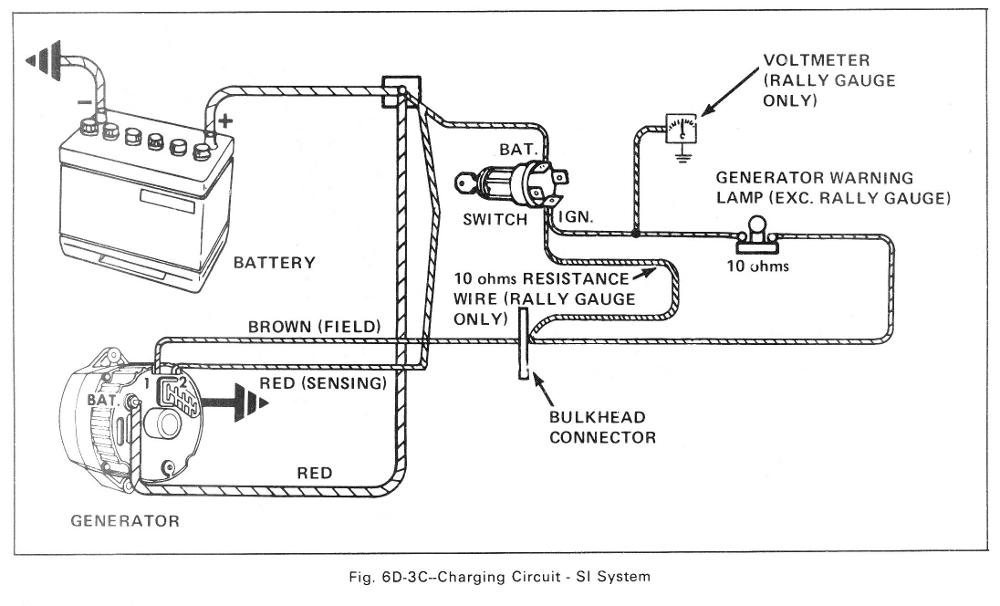

Please use this video as a guide on hooking up a 3 wire gm alternator. The large batt terminal which gets connected to your battery positive. Feed the alt off the acc terminal then when the ign sw is off the alt ign circuits are isolated. This diagram shows how to wire a delco gm internally regulated 3 wire alternatorthis particular model 10si used in the 1970s and early 80s is the one youll find on the generation of gm cars most often used in demolition derbies.

Autorestomod manic mechanic gasoline media 33792 views 2852. Alternator basics tips tricks 1 wire models of gm ford mopar from 1960 1980s autorestomod episo duration. This diagram will let the alternator charge however because the alt is capable of output at idle your vehicle will prob have run on problems.
