Hive dual channel wiring diagram y plan. Hive multizone can support up to three heating zones and one hot water zone. When installing a dual channel receiver the chosen central heating zone will need to be wired into the dual channel receiver and this zone will control the hot water. Here coloured wires indicate the permanent mains supply to the boiler and programmer. Discussion in plumbing and central heating started by codling 3 dec 2018.

On 0800 980 8614. Easiest way to install this would be to replace the existing programmer with the dual channel receiver and the only bit of wiring you have to change is by disconnecting the thermostat cable as described above and connect the white of the mid position valve to the ch on terminal on the dual channel receiver. One dual channel and two single. It must be supplied via a switched fused spur with a minimum contact separation of 3mm both live and neutral and fitted with a 3a fuse.

A dual channel is heating and hot water. Hi my wiring is deferent to how you suggest in the install guide for a dual channel receiver. Hive active heating has two types of receiver. I have a y plan heating system with 3 port valve and hot water tank etc.

Technical support if you need to contact hives installation should only technical support team during ever be carried out by the installation you can do so a qualified engineer. The dual channel hive 4 will go to the appropriate motorised valves brown wire. Page 1 installation guide for hive active heating. Important note important note.

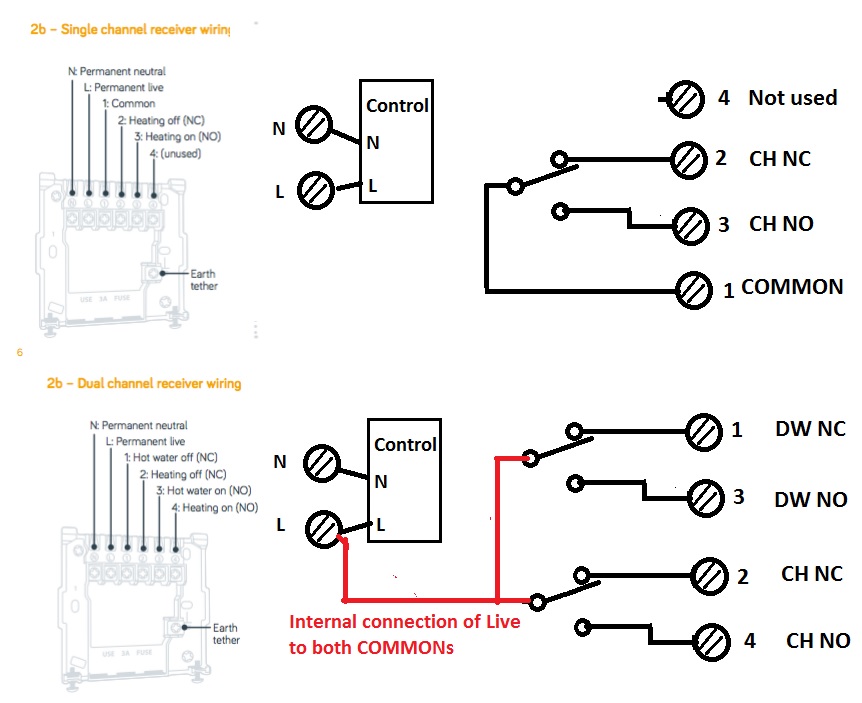

Single channel receiver for combi boilers dual channel receiver for conventional boilers with hot. This diagram shows the wiring layout using the most typical components. Afaik you cannot link a 2nd thermostat to the 2nd channel of a dual channel. I did try to search the other wiring diagram i manage to find are with the hot water and thermostats which is very confusing.

Can you supply a typical wiring schematic so i can get my system up and running. Each multizone installation should include a maximum of. This product is designed for fixed wiring installation only. These smart thermostats are a great way to control your heating from your smartphone or tablet.

Replacing a traditional separate timerprogrammer and room thermostat with an all in one controller such as hive or nest. Applicable to 2 channel systems with a hot water cylinder and radiators. This video is a step by step guide to how i go about the installation of a hive smart thermostat. So as above u need 2x single channel kits.

Or a single channel kit and an extra zone kit. Its the setup of the hive though.
