It cleans the engine by flushing away wear particles. The lubricant could be liquid gas or solid. Mist lubrication system this system is used where crankcase lubrication is not suitable in 2 stroke engine as the charge is compressed in the crankcase it is not possible to have the lubricating oil oil in the sump in such engines the lubricating oil is mixed with the fuel the usual ratio being 3 to 6.
engine lubrication system diagram diesel engine lubrication system diagram

Schematic Diagram Of Lubrication System Download Scientific Diagram

Ppt Lubrication Features Of A Large Diesel Engine Powerpoint

Dry Sump Wikipedia

If the issue isnt addressed the vehicle could run out of oil which would cause the engine to quickly become damaged and need expensive repairs or replacements.

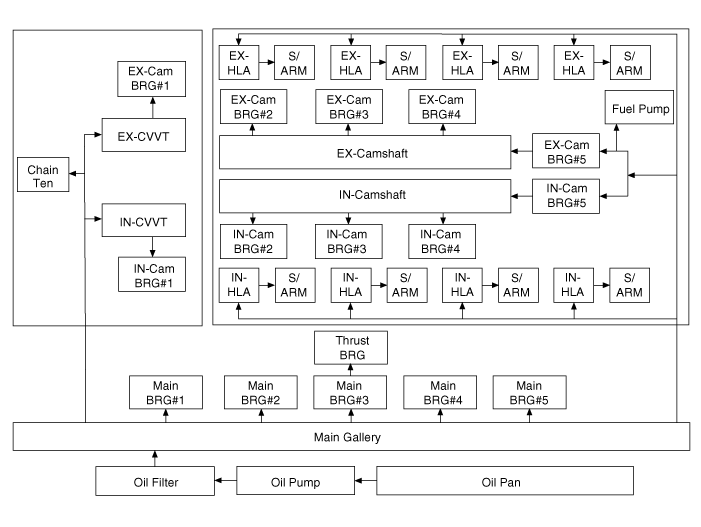

Engine lubrication system diagram. How the main lube oil system work. The lubrication system of a modern engine accomplishes three primary purposes. The engine lubrication system. Controlling where the oil goes in the engine can be an issue even for a nearly stock engine turning moderate rpm.

However engine lubrication system mainly uses liquid lubricants. Lubrication system guide in a chevy big block its essential to maintain not just oil pressure but also oil control. It cools internal engine parts that cannot be directly cooled by the engines water cooling system. Thus lubrication is a process that separates the moving parts by supplying a flow of a lubricating substance between them.

Thats oiling up a squeaky chassis and suspension system neither of which share oil with the engine. Its main function is to enable the formation of a film of oil between the moving parts which reduces friction and wear. The engine most essential functions. Minimizes power loss by reducing the friction between the moving parts.

Lubricating oil system for a marine diesel engine how it works the lubrication system of an engine provides a supply of lubricating oil to the various moving parts in the engine. Lubrication plays a key role in the life expectancy of an automotive engine. The engine lubrication system is to distribute oil to the moving parts to reduce friction between surfaces. If the lubricating system fail an engine would succumb to overheating and seizing very quickly.

Sometimes when you pull into the bay at your local quick lube shop they suggest you need a lube job thats not an oil change. Dont be fooled by the word lubrication however. The main purpose of this section is to give all operation personnel a basic understanding of. When the lubrication system doesnt work properly it can cause serious damage to an engine.

One of the most obvious issues is when an engine leaks oil. Animated video showing the working of lubrication system in a car. It lubricates surfaces to minimize friction losses.
