Home smoke detector wiring diagram. Unlike standard 110 volt home smoke detectors which only make noise at the house the low voltage units allow fire alarms to be reported to a central monitoring station. Typical household smoke alarms use a black wire for detecting smoke a white wire as the common conductor and a red wire that communicates with other smoke detectors in the home. The black and white wires provide the smoke detectors with the power needed to sound an alarm when smoke is detected. All of the smoke detector wiring is connected to the fire alarm zone on the panel and is fully supervised as if it were a single run.
Smoke detectors need to be wired together to create a complete system. Once a smoke detectors wires are properly connected to the wiring on the wall or the ceiling screw it tightly on the wall or the ceiling. Hard wired detectors are also able to run off both power and batteries making them extra secure. Complete guide to home electrical wiring perfect for the homeowner handyman electrician and building inspector.
A smoke detector circuit is built into many home security systems. For additional details on making wiring connections to smoke detector terminals check out smoke detector circuit basics. The difference is that hardwired smoke detectors include an electrical cable that runs unseen behind the ceiling or wall directly into the back of the smoke detector. Nowadays were delighted to declare we have found an incredibly interesting topic to be pointed out namely how to wire smoke detectors in series diagrammost people searching for details about how to wire smoke detectors in series diagram and of course one of them is you is not it.
In this video dave shows how to install a wired smoke detector. Also known as a smoke loop this circuit uses low voltage smoke detectors powered by the alarm system panel. With hard wired detectors a single smoke detector going off will set off the others ensuring that everyone in your home is alerted to hazards. Because technically it is.
For a single smoke detector used in single level homes or apartments the yellow wire. The rough in inspection is. Get on our mailing list to receive our latest promotions and updates. Home smoke detectors please note that all products and services on firestore will be subject to 7 gst with effect from 15 january 2018 and will be applied to the product value upon checkout.
From the outside hardwired smoke detectors look much like battery powered smoke detectors and are located in the same areas within the home.
Smoke Alarm Installation Guide Fire And Rescue Nsw
Ed1ba Wiring Diagram For A Smoke Detector Alarm Wiring Library
Device Security Wiring Diagrams Lari Faint Seblock De
Basic Smoke Detector Nxp

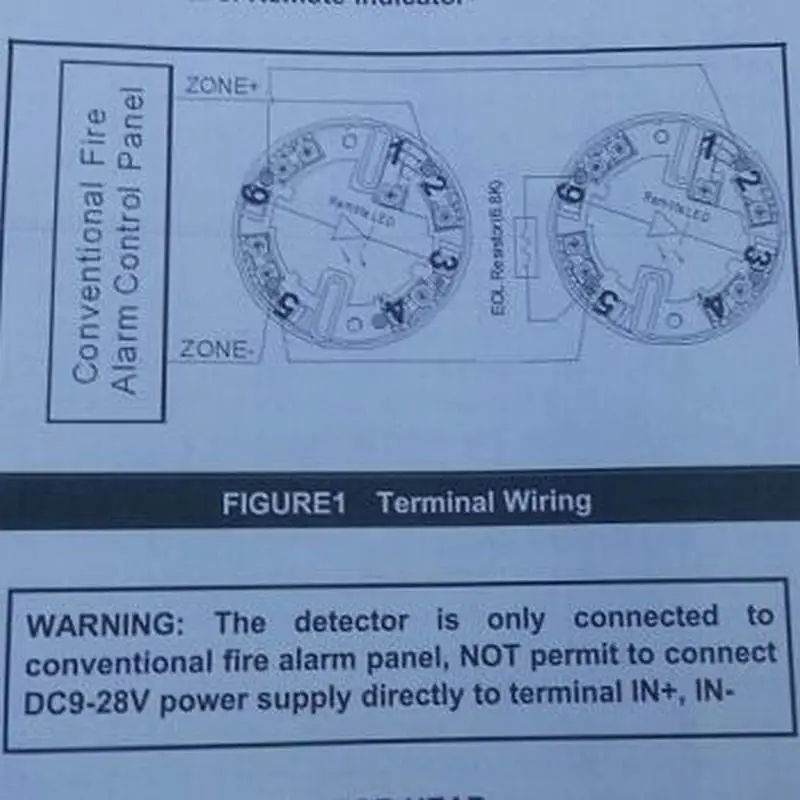

10 Pcs 2wired Smoke Detector Alarm Optical Smoke Alarm Dc9 28v Smoke Detectors For Home Security System New Product Fire Alarm Smoke Detector Smoke Detector Alarmsmoke Alarm Aliexpress
