Honda Jazz 2009 Fuse Box Location

For honda jazzfit 2001 2002 2003 2004 2005 2006 2007 2008 model year. 2009 2010 interior fuse box number ampere rating a circuits protected 1 10 back up 2 75 tpms 3 20 drivers power window 4 not used 5 10 back up light 6 10 srs 7 10 transmission sol 8 8 srs 9. 2009 2010 2011 2012 2013 2014.
honda jazz 2009 fuse box location

2009 Honda Crv Fuse Box Hamra Arabians De

59e Honda Jazz 2009 Fuse Box Wiring Resources

Letak Sekring Honda Jazz Rs 2009 2014

Electrical components such as your map light radio heated seats high beams power windows all have fuses and if they suddenly stop working chances are you have a fuse that has blown out.

Honda jazz 2009 fuse box location. 2009 engine compartment fuse box number ampere rating a circuits protected 1 100 main fuse 70 eps1 2 80 option main 50 ignition switch main 3 30 absvsa motor 30 absvsa fs 402 4 50 headlight main 40 power window main 5 not used. Models with fuse location marks. The video above shows how to replace blown fuses in the interior fuse box of your 2009 honda fit in addition to the fuse panel diagram location. Fuse box diagram location and assignment of electrical fuses for honda fit jazz ge.

Electrical components such as your map light radio heated seats high beams power windows all have fuses and if they suddenly stop working chances are you have a fuse that has blown out. In this article we consider the first generation honda fit gd after a facelift produced from 2007 to 2008. Honda fit 2009 2010 fuse box diagram year of production. The primary under hood fuse box is in.

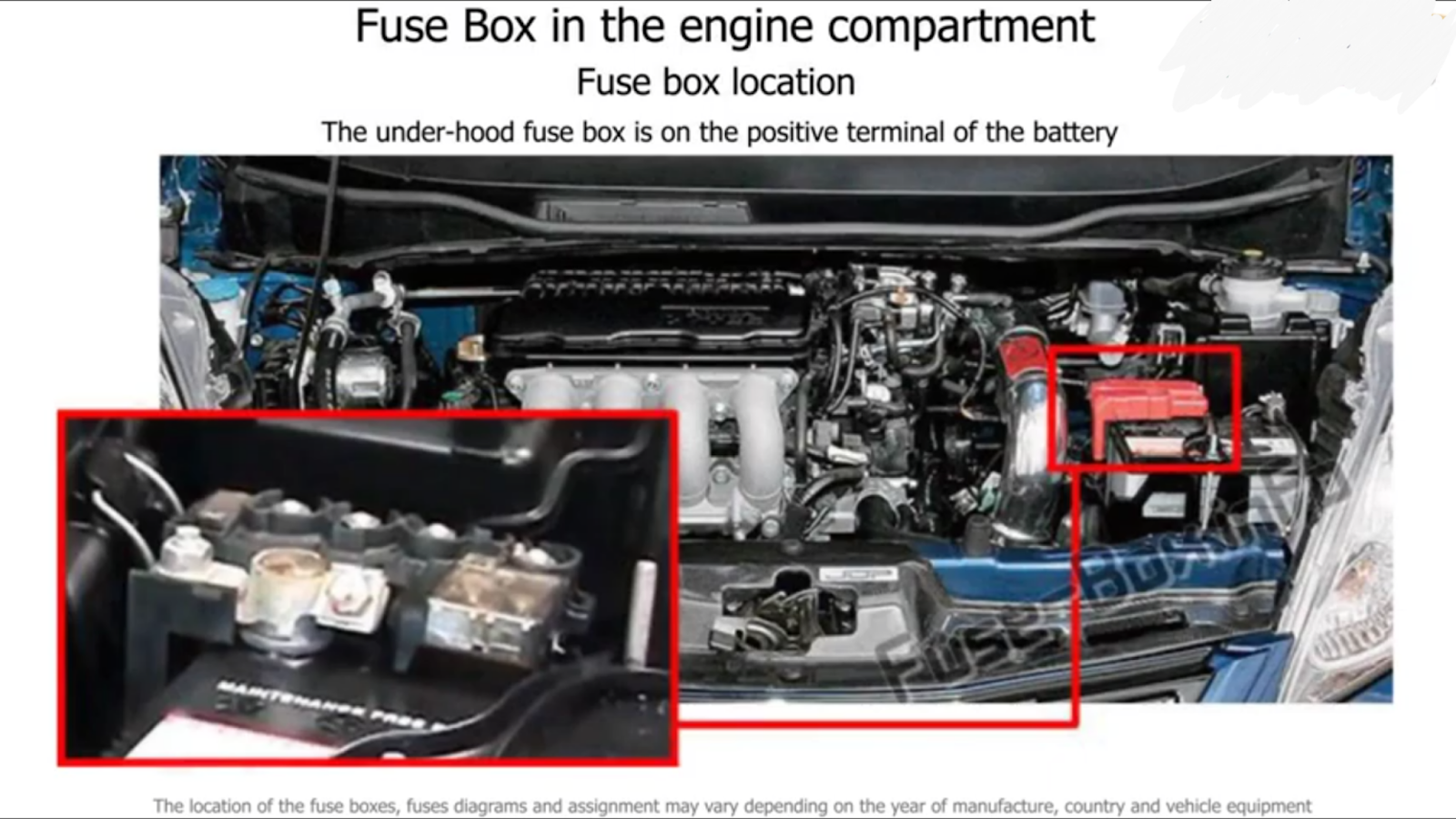

The video above shows how to replace blown fuses in the interior fuse box of your 2010 honda fit in addition to the fuse panel diagram location. Pulling fuses from the interior fuse box of a 2009 honda fit. Engine compartment fuse box fuse box a. Fuse box in engine compartment.

Locate the fuse in question by the fuse number and box cover number. Honda jazz 2005 2006. Honda civic 2009 fuse box diagram year of production. Located in the back side of the engine compartment on the left side.

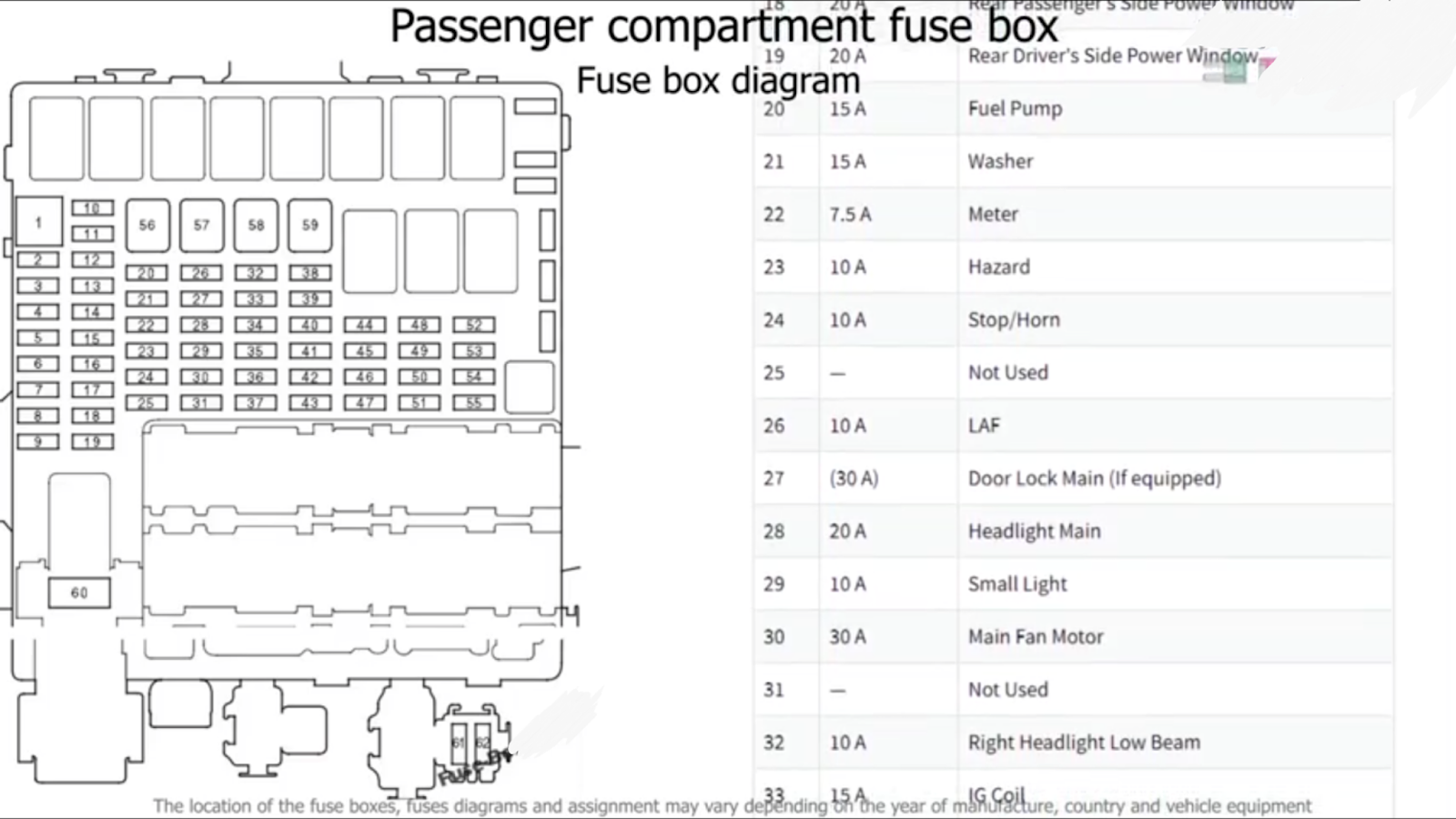

Here you will find fuse box diagrams of honda fit 2007 and 2008 get information about the location of the fuse panels inside the car and learn about the assignment of each fuse fuse layout. 2009 thru 2014 honda fit how to change spark plugs how to change coils duration. Fuse locations are shown on the fuse box cover. Fuse box location and diagrams.

Push the tabs to open the box.
