The pressure volume loop for an idealised petrol engine or otto cycle. The engine may be two or four stroke and may be run on diesel fuel gases or dual fuel. These engines a ingest a mixture of fuel and air b compress it c cause it to react thus effectively adding heat through converting chemical energy into thermal energy d expand the combustion products.
internal combustion engine pv diagram

Energies Free Full Text Characterization Of Performance Of

Four Stroke Gasoline Engine Otto Cycle How Does It Work

Otto Cycle Internal Combustion Engines

All heat engines are characterized by a pressure volume diagram also known as pv diagram which basically shows the variation of the pressure in the cylinder function of its volume for a complete engine cycle.

Internal combustion engine pv diagram. The internal combustion engine is a heat engineits working principle is based on the variation of pressure and volume inside the engines cylinders. Our next video to be uploaded is an animation on how diesel cycle works. 5 the internal combustion engine otto cycle vw s b. Before understanding the otto cycle we must be aware about the operations performed by a reciprocating spark ignition internal combustion engine or simply petrol engine.

Honestly we have been remarked that diagram of an internal combustion engine is being one of the most popular issue at this moment. 913 the otto cycle is a set of processes used by spark ignition internal combustion engines 2 stroke or 4 stroke cycles. The internal combustion engine stop motion animations and the pv cycle. Diagram describing the ideal combustion cycle by carnot.

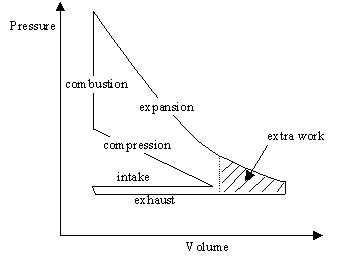

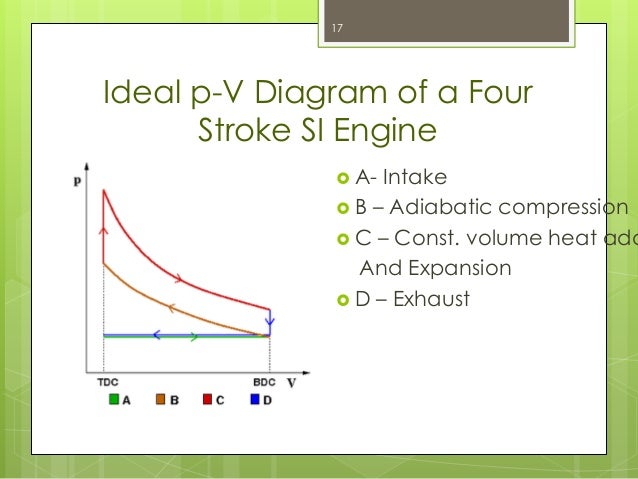

This type of engine was first used in ships and stationary power generating plants and is now. In an internal combustion engine the expansion of the high temperature and high pressure gases produced by combustion applies. In the ideal otto cycle spark ignition combustion occurs at constant volume thus represented by a vertical line at the pv diagram. Internal combustion engine duration.

Like the pv diagram the processes for a ts diagram of a complete carnot cycle is similar such as line ab isothermal expansion where the temperature t 1 constant. An internal combustion engine ice is a heat engine in which the combustion of a fuel occurs with an oxidizer usually air in a combustion chamber that is an integral part of the working fluid flow circuit. How an internal combustion engine works the new york times for diagram of an internal combustion engine image size 480 x 255 px and to view image details please click the image. So that we tried to get some terrific diagram of an internal.

Line bc adiabatic expansion where the entropy s 2 constant. Therefore first let us see an overview of internal combustion spark ignition engine. In ideal diesel cycle compression ignition combustion occurs at constant pressure represented by a flat line o. You can also get an idea of the piston movement inside the cylinder as per the pv diagram.

In engineering the miller cycle is a thermodynamic cycle used in a type of internal combustion enginethe miller cycle was patented by ralph miller an american engineer us patent 2817322 dated dec 24 1957.
